The 150mm stoke buffer was designed to meet the requirements of UIC 526-3 Cat L, which emphasises the need to protect light, fragile loads and also requires the buffer to protect heavy loads when necessary. Alternative performance characteristics are available.
Buffer type: Type 5 – 150
Capacity: 80kJ @625kN
Ultimate capacity: 288kJ

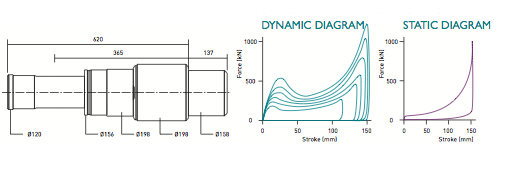

Buffer type: Uni plus – 150
Capacity: 80kJ @625kN force
Ultimate capacity: 198kJ
