The 105mm stroke buffer was designed to meet the requirements of UIC 526 Cat C dynamic characteristics.The units operate mainly as side buffers on freight vehicles with 105mm stroke.

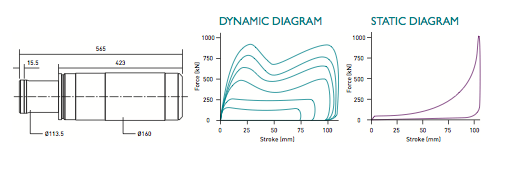

Buffer type: Type 5-105
Capacity: 80kJ @1000kN force
Ultimate capacity: 200kJ

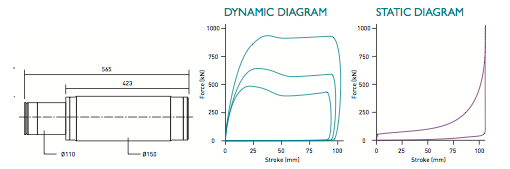

Buffer type: Type Uni plus 105
Capacity: 80kJ @1000kN force
Ultimate capacity: 160kJ

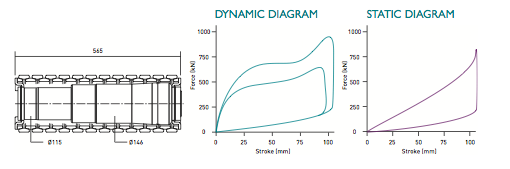

Buffer type: Type 3RCC (combination)
Capacity: 70kJ @1000kN force
Ultimate capacity:117kJ
These buffers fit forged steel casings and European cast steel casings.
