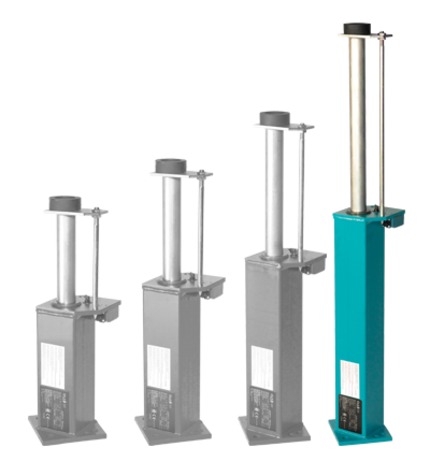

SEB25 SERIES LIFT BUFFER
Related documents
| Metric | Imperial | |
|---|---|---|
| Rated speed | 2.54 m/s | 500 ft/min |
| Maximum speed (115%) | 2.92 m/s | 575 ft/min |

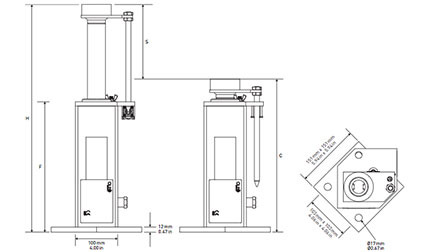

| Stroke 'S' (min.) | 435 mm | 17.13 in |
| Impact mass range | 450-4545 kg | 992-10020 lbs |
| Height 'H' max. (extended) | 1126.5 mm | 44.4 in |
| Height 'C' min. (compressed) | 674.3 mm | 26.5 in |
| Height 'F' to reservoir top | 631.0 mm | 24.8 in |
| Weight no oil (dry) | 20.0 kg | 44.1 lbs |
| Oil volume | 3.3 litres | 0.9 gallons |
| Reduced stroke: Rated speed with terminal speed limiting device, based on EN81.1 rule 10.4.3.2 and ASME A17.1 rule 2.22.4.1.2 | ||
| Reduced stroke ASME A17.1 | 3.59 m/s | 706 ft/min |
| Reduced stroke EN81.1 | 3.59 m/s | 706 ft/min |
