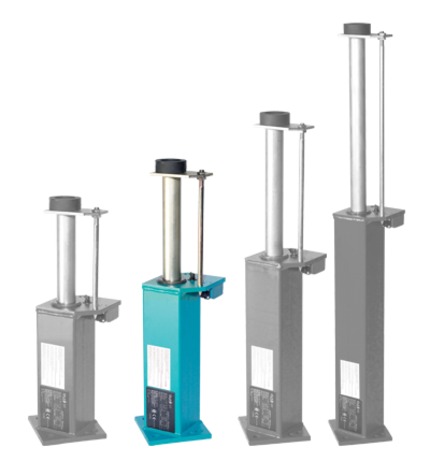

SEB18 SERIES LIFT BUFFER
Related documents
| Metric | Imperial | |
|---|---|---|
| Rated speed | 1.80 m/s | 354 ft/min |
| Maximum speed (115%) | 2.07 m/s | 407 ft/min |

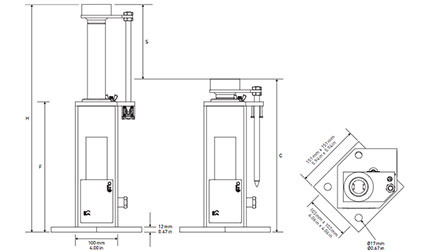

| Stroke 'S' (min.) | 219 mm | 8.62 in |
| Impact mass range | 450-4545 kg | 992-10020 lbs |
| Height 'H' max. (extended) | 643.5 mm | 25.3 in |
| Height 'C' min. (compressed) | 404.3 mm | 15.9 in |
| Height 'F' to reservoir top | 364.0 mm | 14.3 in |
| Weight no oil (dry) | 12.8 kg | 28.2 lbs |
| Oil volume | 1.8 litres | 0.5 gallons |
| Reduced stroke: Rated speed with terminal speed limiting device, based on EN81.1 rule 10.4.3.2 and ASME A17.1 rule 2.22.4.1.2 | ||
| Reduced stroke ASME A17.1 | 2.54 m/s | 500 ft/min |
| Reduced stroke EN81.1 | - m/s | - ft/min |
