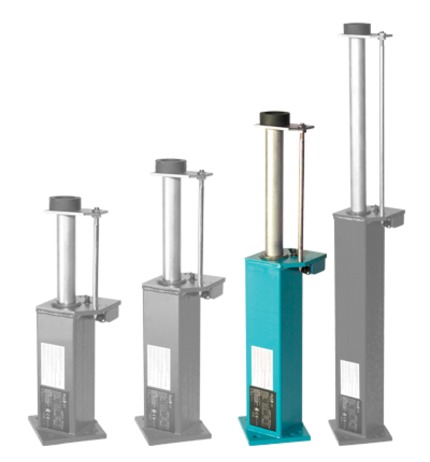

SEB20 SERIES LIFT BUFFER
Related documents
Metric | Imperial | |
---|---|---|
Rated speed | 2.03 m/s | 400 ft/min |
Maximum speed (115%) | 2.33 m/s | 460 ft/min |

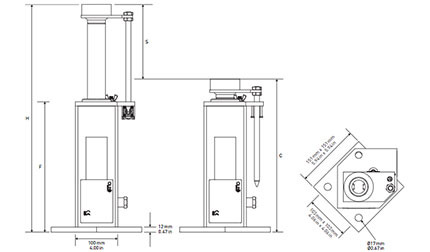

Stroke 'S' (min.) | 279 mm | 10.98 in |
Impact mass range | 450-4545 kg | 992-10020 lbs |
Height 'H' max. (extended) | 777.5 mm | 30.6 in |
Height 'C' min. (compressed) | 481.3 mm | 18.9 in |
Height 'F' to reservoir top | 438.0 mm | 17.2 in |
Weight no oil (dry) | 14.8 kg | 32.6 lbs |
Oil volume | 2.2 litres | 0.6 gallons |
Reduced stroke: Rated speed with terminal speed limiting device, based on EN81.1 rule 10.4.3.2 and ASME A17.1 rule 2.22.4.1.2 | ||
Reduced stroke ASME A17.1 | 2.87 m/s | 564 ft/min |
Reduced stroke EN81.1 | - m/s | - ft/min |
