Elevator | SEB 16

SEB 16

SEB 16 (SEB16-2C1CG-B10)

Item Out Of Stock

Product Description

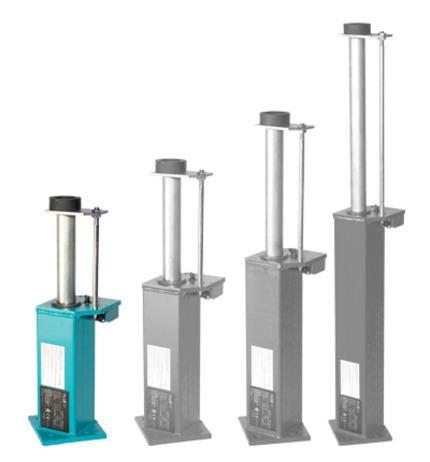

The SEB gas hydraulic buffer series provides a premium robust solution for medium speed applications.

A self contained, maintenance free* unit designed to weigh approximately half of a conventional buffer and have a small space envelope. This means that shipping costs are significantly reduced and allows for quick and easy
installation.

The SEB series is designed and built according to strict engineering standards and is universally approved and globally certified.

*other than statutory inspections.

  Metric Imperial
Rated speed 1.60 m/s 315 ft/min
Maximum speed (115%) 1.84 m/s 362 ft/min

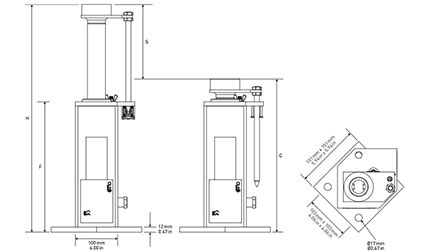

Stroke 'S' (min.) 173 mm 6.81 in
Impact mass range 450-4545 kg 992-10020 lbs
Height 'H' max. (extended) 540.5 mm 21.3 in
Height 'C' min. (compressed) 350.3 mm 13.8 in
Height 'F' to reservoir top 307.0 mm 12.1 in
Weight no oil (dry) 11.2 kg 24.7 lbs
Oil volume 1.5 litres 0.4 gallons
Reduced stroke: Rated speed with terminal speed limiting device, based on EN81.1 rule 10.4.3.2 and ASME A17.1 rule 2.22.4.1.2
Reduced stroke ASME A17.1 2.26 m/s 444 ft/min
Reduced stroke EN81.1 - m/s - ft/min
