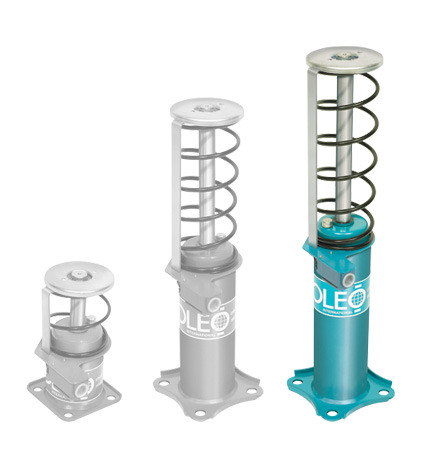

The LSB oil buffer series is a self contained, maintenance free* unit designed for low and medium speed applications. The LSB series is designed to be low cost while maintaining Oleo's recognised performance standards.
Oleo's LSB buffers weigh approx half of a conventional buffer and have a small space envelope, this means that shipping costs are significantly reduced. In addition there is the option to supply the buffers oil filled rather than with a separate container of oil saving valuable time during elevator installation and reducing the risk of errors and spillage.
The LSB series is designed and built according to strict engineering standards and is universally approved and globally certified.
* other than statutory inspections.
Related documents
| Metric | Imperial | |
|---|---|---|
| Rated speed | 1.80 m/s | 354 ft/min |
| Maximum speed (115%) | 2.07 m/s | 407 ft/min |

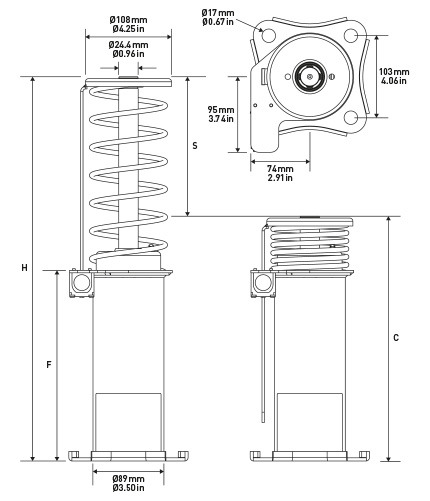

| Stroke 'S' (min.) | 219.7 mm | 8.65 in |
| Impact mass range | 450-3250 kg | 992-7165 lbs |
| Height 'H' max. (extended) | 577.6 mm | 22.7 in |
| Height 'C' min. (compressed) | 353.0 mm | 13.9 in |
| Height 'F' to reservoir top | 285.6 mm | 11.2 in |
| Weight no oil (dry) | 7.6 kg | 16.8 lbs |
| Oil volume | 1.0 litres | 0.3 gallons |
| Reduced stroke: Rated speed with terminal speed limiting device, based on EN81.1 rule 10.4.3.2 and ASME A17.1 rule 2.22.4.1.2 | ||
| Reduced stroke ASME A17.1 | 2.54 m/s | 500 ft/min |
| Reduced stroke EN81.1 | - m/s | - ft/min |
