Elevator | LB 32

LB 32

LB 32 (LB32)

Product Description

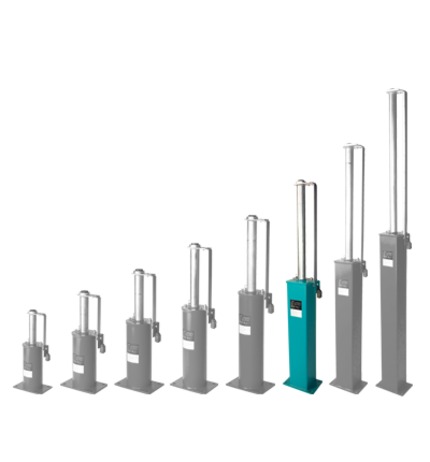

Oleo has been offering the LB series for over thirty years. The Oleo LB gas hydraulic buffer series is globally recognised for its excellent performance and reliability. It is a self contained, maintenance free* unit designed for heavy and high speed installations offering our largest mass range.

Given the large mass range and rated speed of the LB series, this buffer can be found in a number of different installations including, low, medium and high rise buildings, vehicle and service elevators.

The LB series is designed and built according to strict engineering standards and is universally approved and globally certified.

* other than statutory inspections.

  Metric Imperial
Rated speed 3.15 m/s 620 ft/min
Maximum speed (115%) 3.62 m/s 713 ft/min

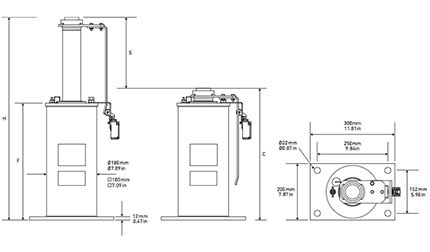

Stroke 'S' (min.) 699 mm 27.52 in
Impact mass range 700-8330 kg 1543-18365 lbs
Height 'H' max. (extended) 1706.3 mm 67.2 in
Height 'C' min. (compressed) 988.8 mm 38.9 in
Height 'F' to reservoir top 947.0 mm 37.3 in
Weight no oil (dry) 55.2 kg 121.7 lbs
Oil volume 20.0 litres 5.3 gallons
Reduced stroke: Rated speed with terminal speed limiting device, based on EN81.1 rule and ASME A17.1 rule
Reduced stroke ASME A17.1 5.57 m/s 1096 ft/min
Reduced stroke EN81.1 5.57 m/s 1096 ft/min
