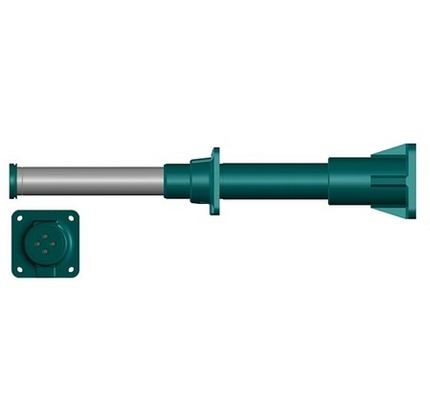

The Type 70 buffer is a long stroke 700kN buffer available with 500mm and 600mm stroke. These are typically used on dockside cranes and in steel mills. The Type 70 buffers are also used on mining applications as they can be used vertically. They have also been used as end stops for funicular railways as they have the ability to be set at an angle.

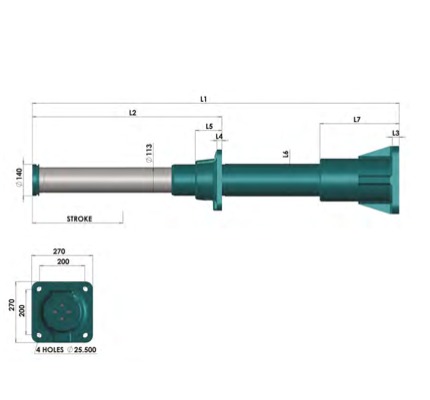

Metric | |
---|---|
Stroke | 500 mm |
Dynamic Capacity | 280 kJ |
Maximum End Force | 700 kN |
Static Start Force | 12 kN |
Static End Force | 55 kN |
