Industrial | Type 730

Type 730

Type 730 (Type 730)

Product Description

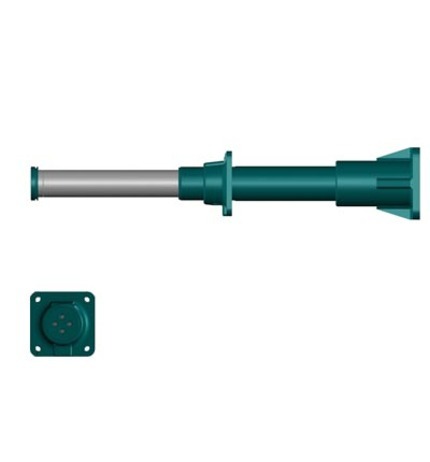

These Type 700 buffers are multiple units of Type 70 buffers used in series – typically used as end stops for either rail or crane applications on both dockside and offshore applications. The Type 700 is now a popular choice for dockside cranes as these are becoming faster and larger and need a more robust buffer for energy absorption.

These buffers are traditionally used as end stops and made up of multiple Type 70 units which are housed in a casing. They can be either mounted on a fabrication or on a reinforced concrete block. These long stroke buffers are usually used in conjunction with a buffing trolley to protect them from damaging offset loads.

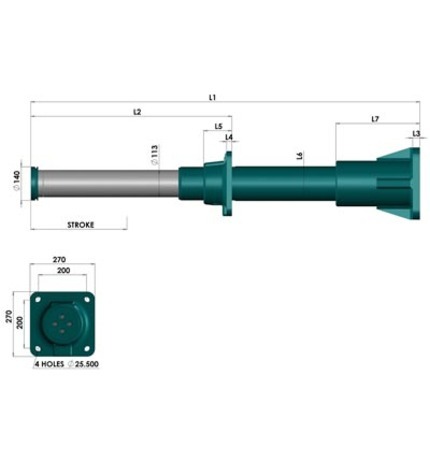

Stroke 3000 mm
Dynamic Capacity 1680 kJ
Maximum End Force 700 kN
Static Start Force 12 kN
Static End Force 150 kN
