Industrial | Type 53

Type 53

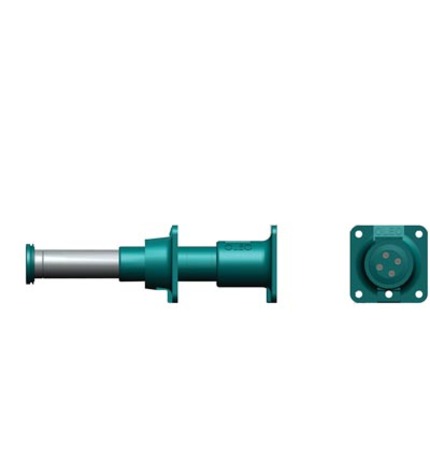

Type 53 (Type 53)

Product Description

Like the Type 9 the Type 50 can be used in applications such as overhead cranes in steel mills or on dockside cranes. The type 50 is rated to a lower max. force and, has a lower end force with strokes of 250mm, 300mm and 400mm. These are typically used on the main boom and main trolley on large STS cranes.

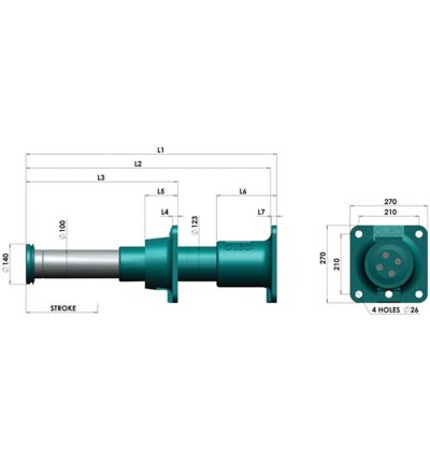

Stroke 300 mm
Dynamic Capacity 120 kJ
Maximum End Force 500 kN
Static Start Force 5 kN
Static End Force 60 kN
