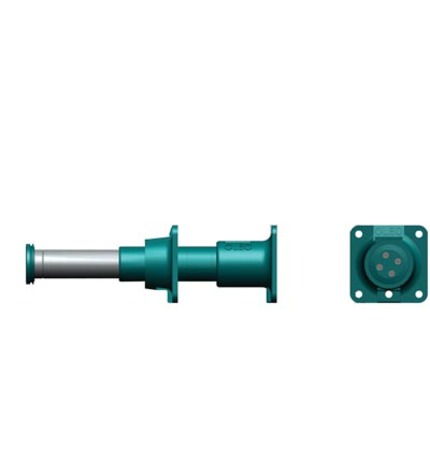

Like the Type 9 the Type 50 can be used in applications such as overhead cranes in steel mills or on dockside cranes.

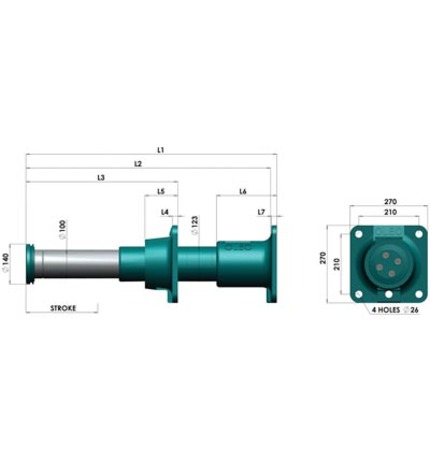

The type 50 is rated to a lower maximum force and has a lower end force with strokes of 250mm, 300mm and 400mm. These are typically used on the main trolley on large STS cranes or as the main gantry buffer for smaller cranes..
Metric | |
---|---|
Stroke | 250 mm |
Maximum End Force | 500 kN |
Static Start Force | 5.3 kN |
