Industrial | Type 23

Type 23

Type 23 (Type 23)

Product Description

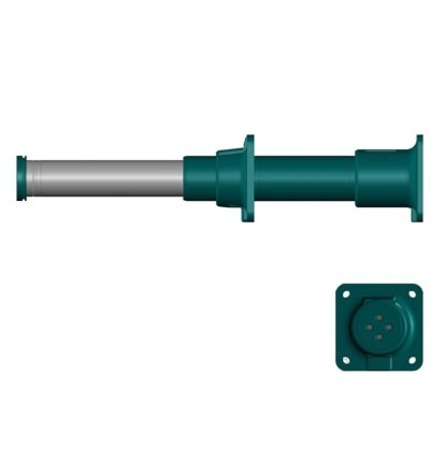

The Type 23 is a buffer specially designed to be fully compressed at low speeds and is typically used on port cranes.

This buffer was initially developed for overhead cranes in steel mills and is a high capaacity, long life unit.

The Type 23 is related to the Type 9 buffer which offers good all-round performance for a number of different applications and industries, including rail end stops, port cranes and the heavy machinery used in bulk material-handling.

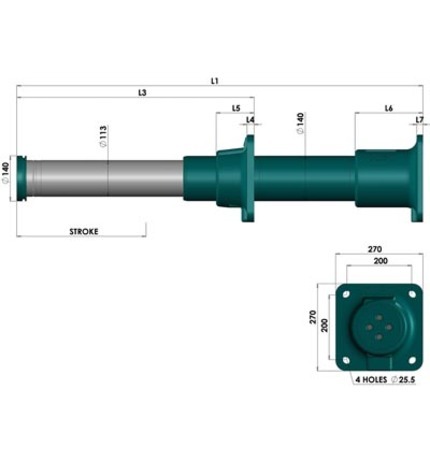

Stroke 400 mm
Dynamic Capacity 238 kJ
Maximum End Force 700 kN
Static Start Force 7 kN
Static End Force 42 kN
