The type 110 buffer is a highly modular design allowing the same components to be used in a variety of applications.
The type 110 buffer comes with a standard chrome finish for non corrosive environments such as factory buildings and optional marine plating for more corrosive environments such as docksides and ports.
The type 110 is specified for the following usage:
3,500 cycles at 10% of rated load (corresponds with a daily impact of the unit at 10 years life)
500 cycles at 50% of rated load (corresponds with a weekly impact at 10 years life)
12 cycles at full load, which is the equivalent of: • One installation test
One test every year for 10 years
One emergency operation
Operating temperature range of -30°C to +100°C.

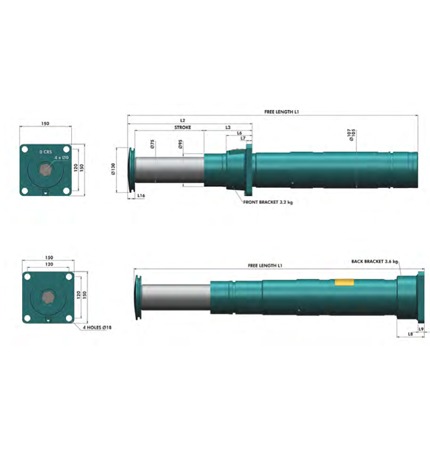

* Where bellows are fitted L1 and L2 are +10mm
Back Mount – 200mm, 300mm, 400mm STROKE ONLY
Double Foot Mount – Foot mounted units should employ a backstop as buffer loads should not be exerted through foot bolts alone
|Maximum End Force||350 kN|
|Angle of Impact (Code F, D,T)||2.5°|
|Angle of Impact (Code B)||1.5°|
|Head Diameter||130 mm|
|Maximum Absorbed Energy||53 kJ|
