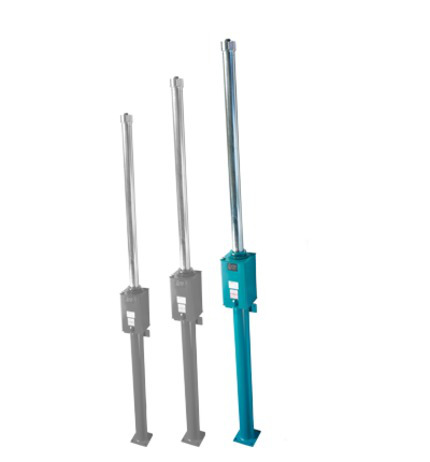

The Oleo LB 50-65 gas hydraulic buffer range is designed specifically for high speed elevator applications typically seen in high rise buildings where speeds over 5 m/s are achieved. If approved terminal speed limiting devices are employed by applying the reduced stroke calculation the LB 50-65 can deal with speeds up to 11.62 m/s.
The Oleo principle of designing self contained, maintenance free* buffer units is applied to the LB50-65 series of buffers and offers an easy installation process, this makes Oleo buffers the best solution for the life of the installation.
The LB series is designed and built according to strict engineering standards and is universally approved and globally certified.
* other than statutory inspections.
|Rated speed||6.09 m/s||1199 ft/min|
|Maximum speed (115%)||7.00 m/s||1379 ft/min|

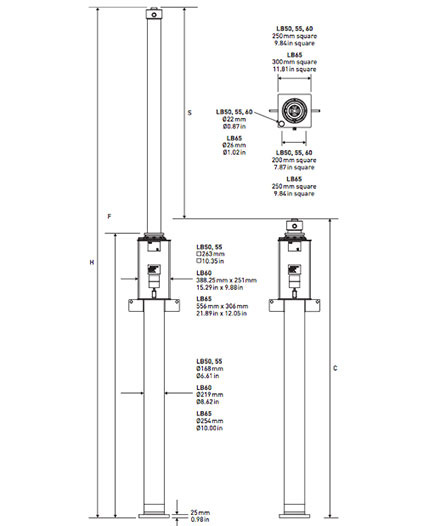

|Stroke 'S' (min.)||2504 mm||98.58 in|
|Impact mass range||1500-10000 kg||3307-22046 lbs|
|Height 'H' max. (extended)||6180.6 mm||243.3 in|
|Height 'C' min. (compressed)||3597.5 mm||141.6 in|
|Height 'F' to reservoir top||3455.0 mm||136 in|
|Weight no oil (dry)||480.2 kg||1058.7 lbs|
|Oil volume||73.0 litres||19.3 gallons|
|Reduced stroke: Rated speed with terminal speed limiting device, based on EN81.1 rule 10.4.3.2 and ASME A17.1 rule 18.104.22.168.2|
|Reduced stroke ASME A17.1||10.55 m/s||2076 ft/min|
|Reduced stroke EN81.1||10.55 m/s||2076 ft/min|
